Suzuki GSX 1400 - BLUE LEDs for the Clocks

One of the first things modified was the clocks.  This was after seing a picture on the web of a set with blue illumination which I thought looked good.  The clocks are illuminated with surface-mount LEDs.   K1-K5 clocks have 6 Yellow as standard and FE/K6 onwards have 12.  I have also been able to convert the 6-LED units to 10-LEDs which is also an improvement.

Links:





Contact me by EMAIL



















 Home / GSX Home



Click on pictures below for larger versions -

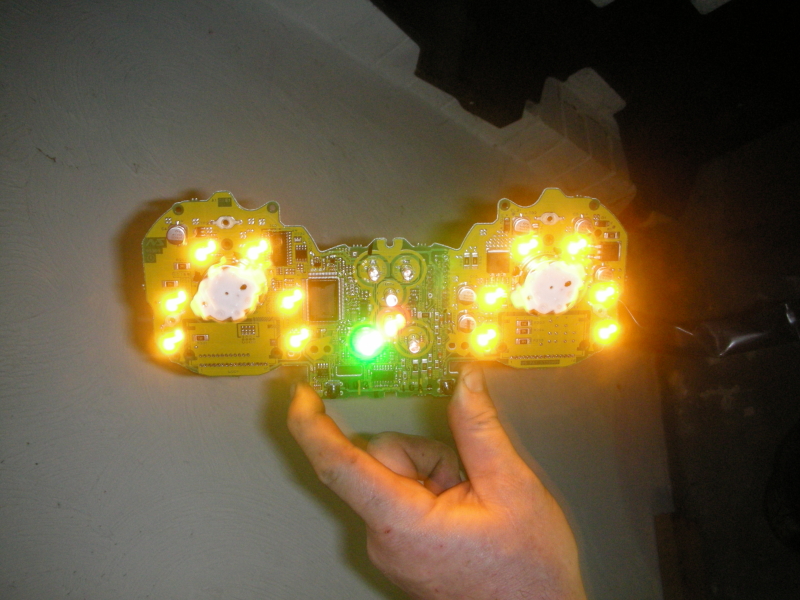

Standard FE 12 LED

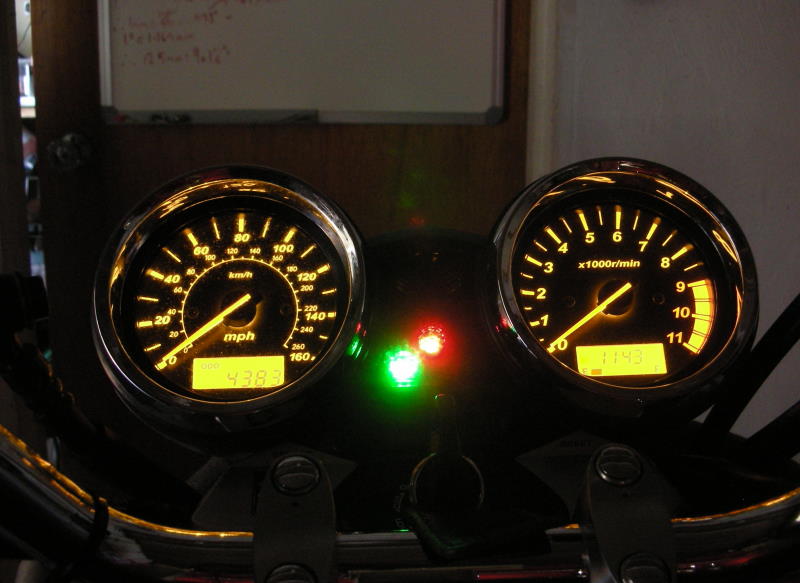

Standard FE Illumination

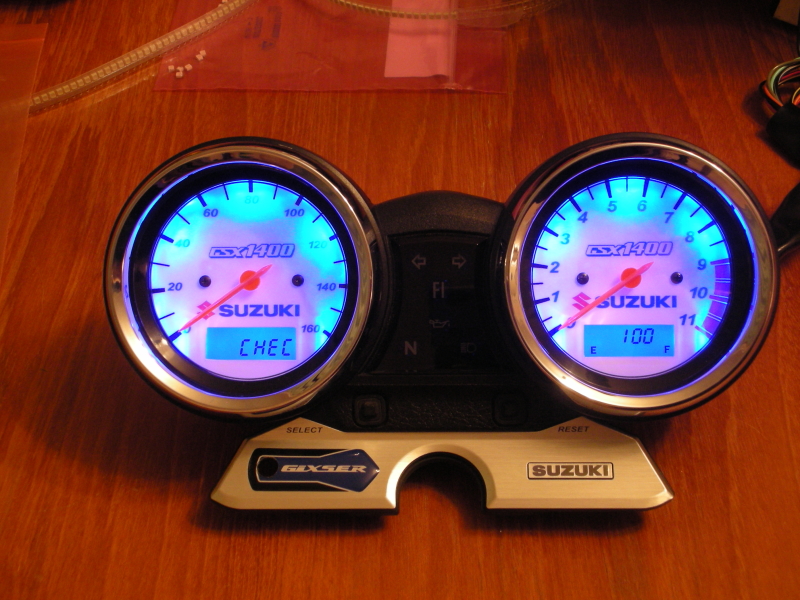

Blue K1-K5 with White Dials

Converted to blue
Forward bias increased on right hand six for comparison

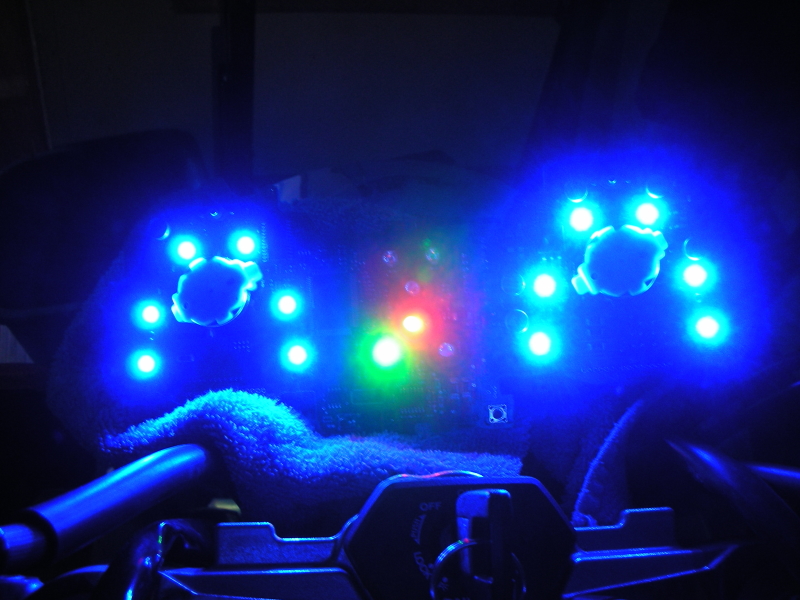

Converted to 12 LED Blue
Bias increased to all LEDs
to improve illumination

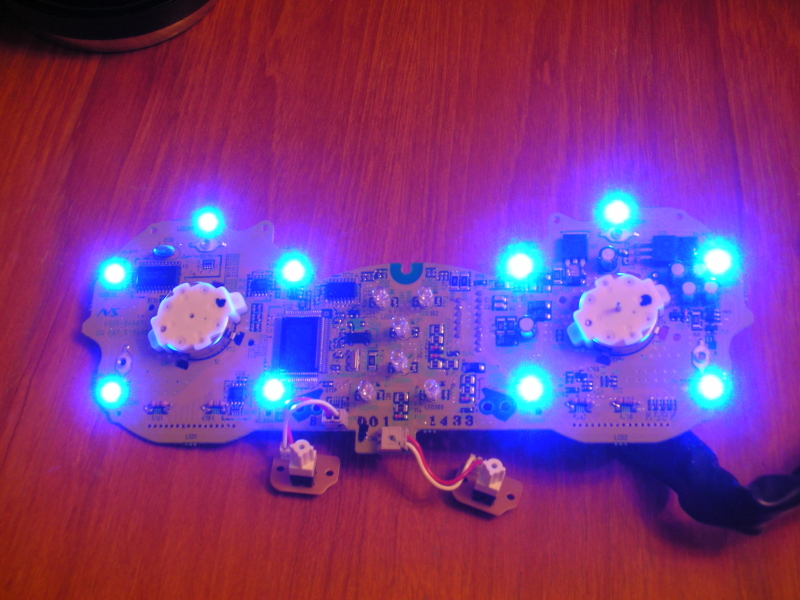

Converted to 10 Blue LED

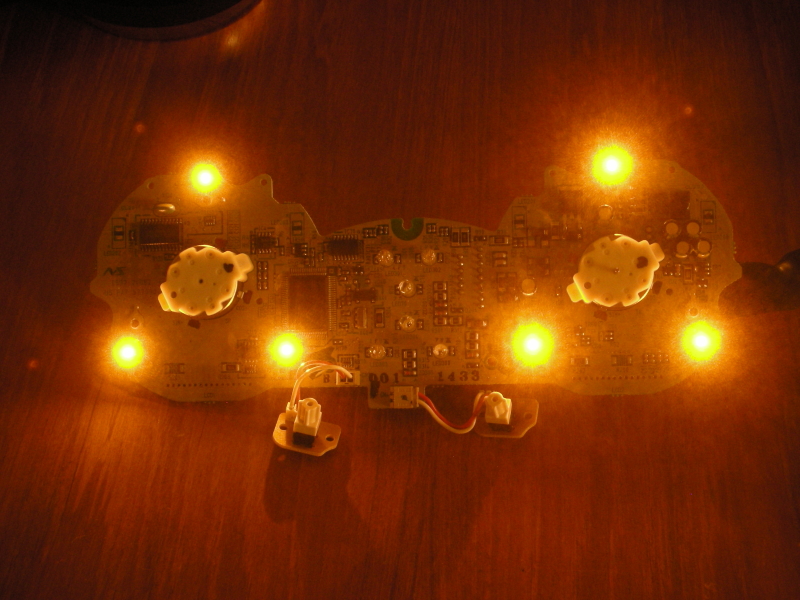

Standard K1-K5 (6-LED)

Standard K1-K5 (6-LED)

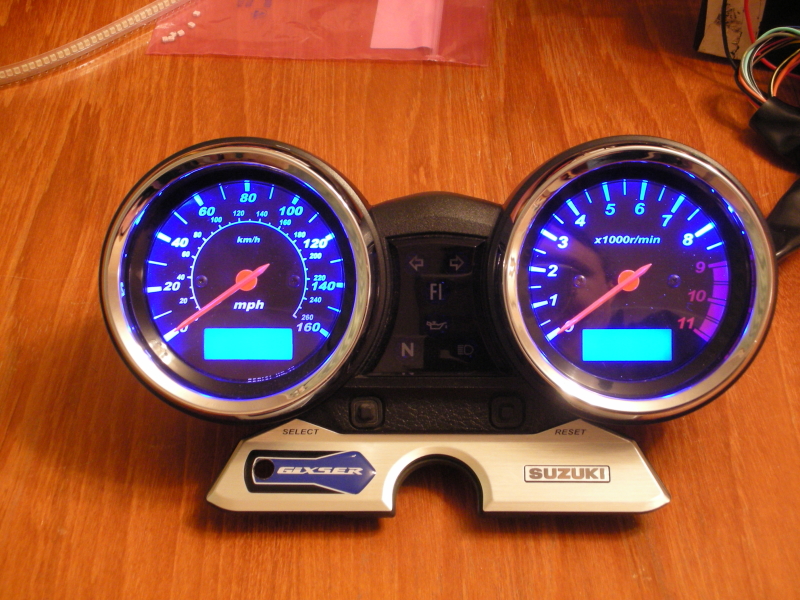

Blue K1-K5 with Std Dials
